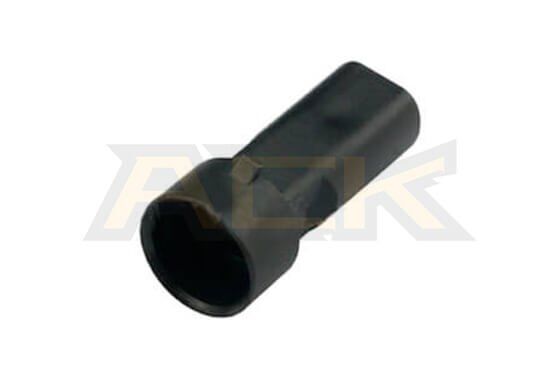

3 Pin Female Coolant Temperature Sensor Connector Mate with 15397149 15397275

SKU ACK7033D-1.5-11 Categories , Tags , , ,

OEM Part No.:/

Mating Connector: ACK7033D-1.5-21(15397149 15397275)

Additional information

Classified Parts

Housing

Tab Size

1.5mm(060)

Male/Female

Male

Unsealed/Sealed

Sealed

Number of Poles

3 Pin

ACK Part Number

ACK7033D-1.5-11

Classification

OEM/ACK

Guarantee Period

Lifetime Warranty

Free Sample

Yes

MOQ

Small orders can be accepted; 50/100/200/500 PCS per bag

Material

PBT+G, PA66+GF

Operating Temperature Range

-40℃~120℃

Wire Gauge Range

22-20AWG

Accessories to Choose

A (with terminals & seals), B (Without Terminals & seals), C (Only Terminals), D (Only Seals)

Packing

Customized (Blister Packing, PVC Box, Label, etc.), Plastic Bag, Export standard carton

Certification

TUV, TS16949, ISO14001, RoHS

ACK is committed to providing a lifetime after-sales solution.
If for any reason you are not satisfied with our product or service, please feel free to contact us, we will answer and solve it asap to meet your 100% satisfaction with the best service.

Regarding the refund, please advise the invoice number and ensure the completed packaging of the goods. Your action will enable us to expedite the verification and arrange the refunds immediately after receiving the return.

We accept custom wire harnesses from simple to complex. Please contact our team to get the quotation.

DHL, Fedex, UPS, TNT, EMS, By air, By sea

  • Paypal : Available for orders under $1,000.
  • T/T :No order amount limited.
  • West Union : No order amount limited.

What's weather pack connector ?

Delphi Weather Pack(Delphi Packard Weatherpack) are popular wire connectors commonly used in automotive applications to withstand exposure to extreme temperatures, moisture, and harsh engine compartment fluids and chemicals.The female housing is manufactured of nylon plastic and has silicone seals to prevent moisture and dust ingress.Features positive snap-locking action with secondary locking that helps terminal retention and provides access to terminals for service.

Applications

Weather pack connectors are able to protect from dirt, corrosion, and moisture, allowing them to last longer in the demanding conditions found under the hood of your vehicle. They have been tested to withstand temperatures of -40℃ to 125℃. The terminals are tin-plated and utilize flex pin and lap lock designs to provide the highest reliability. Thus they are extensively used in severe-duty applications including, construction, off-road, and industrial equipment, specially deal for race car electrical systems.

Previous
Next

Delphi Weather Pack Series

Weather Pack Series Connectors are great for engine compartments because of their high performance and environmental design. Weather Pack self-lubricating seals feature multiple sealing ribs and will not stain, deteriorate or corrode other materials.Depending on your specific application, 1-way, 2-way, 3-way, 4-way, and 6-way selections are available.

Features

What does Weather Pack Connector Kit contain?

weather pack connector kit

ACK can provide different specifications according to the specific needs of the customer and quote back.

How do you crimp&removal a weather pack connector?

Step 1

Strip wire 3/16 inch (0.48cm) and install the terminal seal.

Step 2

Terminal, seal and wire (positioned to be crimped).

Step 3

Crimp the terminal – the tool crimps the wire and the dust seal/strain relief in a single operation.

Slide the tubular shaft over the terminal in a rotating motion until the tool bottoms out and the barbs are fully retracted.

Crimping Tool

weather pack terminal crimping tool

Removal Tool

weather pack terminal crimping tool
removal tool for weather pack terminal
