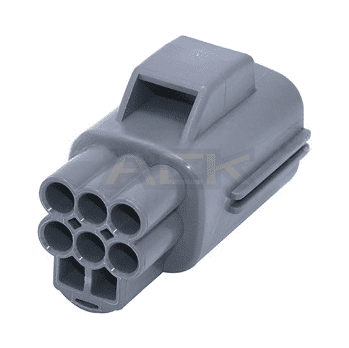

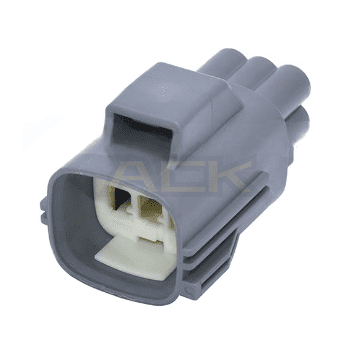

OEM Part No.:7282-5553-10
Mating Connector: ACK7067Y-2.2-11(7283-5553-10)
Classified Parts | Housing |
---|---|
Tab Size | 2.3mm(090) |
Male/Female | Male |
Unsealed/Sealed | Sealed |
Number of Poles | 6 Pin |
ACK Part Number | ACK7067Y-2.2-11 |
Classification | OEM/ACK |
Guarantee Period | Lifetime Warranty |
MOQ | Small orders can be accepted; 50/100/200/500 PCS per bag |
Free Sample | Yes |
Material | PBT+G, PA66+GF |
Wire Gauge Range | 24-20 AWG |
Operating Temperature Range | -40℃~120℃ |
Accessories to Choose | A (with terminals & seals), B (Without Terminals & seals), C (Only Terminals), D (Only Seals) |
Packing | Customized (Blister Packing, PVC Box, Label, etc.), Plastic Bag, Export standard carton |
Certification | TUV, TS16949, ISO14001, RoHS |
ACK is committed to providing a lifetime after-sales solution.
If for any reason you are not satisfied with our product or service, please feel free to contact us, we will answer and solve it asap to meet your 100% satisfaction with the best service.
Regarding the refund, please advise the invoice number and ensure the completed packaging of the goods. Your action will enable us to expedite the verification and arrange the refunds immediately after receiving the return.
We accept custom wire harnesses from simple to complex. Please contact our team to get the quotation.
DHL, FedEx, UPS, TNT, EMS, By air, By sea
Electronic Throttle System
Most modern vehicles now use electronic throttle control systems, which are generally made up of the accelerator pedal, ETC module, and throttle body. The accelerator pedal looks the same as it always has, but its interaction with the throttle body has changed. The throttle cable has been replaced by the accelerator position sensor (APS), which detects the exact position of the pedal at any given moment, transmitting this signal to the ETC module.That means that when you step on your car’s gas pedal, instead of opening the throttle, you’re activating an accelerator pedal module, which converts the pressure you put on the pedal into an electric signal. That signal is then sent to an electronic control unit, which takes your inputs into account, as well as outside variables, to open the throttle for optimum efficiency and performance. It’s a complex system, but one that has a lot of benefits for engine wear, performance and efficiency.
Accelerator Pedal Position Sensor (APPS)
The accelerator pedal position sensor(APS) is an important component in the electronic throttle system. It transmissions the signal of the depth and speed of the pedal to ECU.
APS is installed inside the accelerator pedal to monitor the position of the accelerator pedal at any time. The current electronic accelerator pedal uses two resistive sensors and two output voltages. Therefore, the electronic accelerator pedal plug interface we usually see has 6 pins, which are two completely independent reference voltages, output voltages, and grounding. To prevent one of the systems from malfunctioning, the other system can immediately start and replace work.
Safety Tips:
If any of these symptoms occur or your car isn’t responding accurately when you press the gas pedal, you should pull over immediately and call a mechanic.
6 Symptoms of a Bad Accelerator Pedal Position Sensor
ACK provides a variety of accelerator pedal sensor position connectors, covering popular models such as Benz, BMW, Honda, Toyota, Suzuki, VW, and so on, also provides a full set of accessories including terminals and wire seals to satisfy your one-stop purchase.
Because of the wide variety of products, not all of our products are displayed on the website. If you do not find what you want, pls directly initiate an inquiry to us, provide us with pictures or OEM models, we will reply to you as soon as possible after checking your information.
