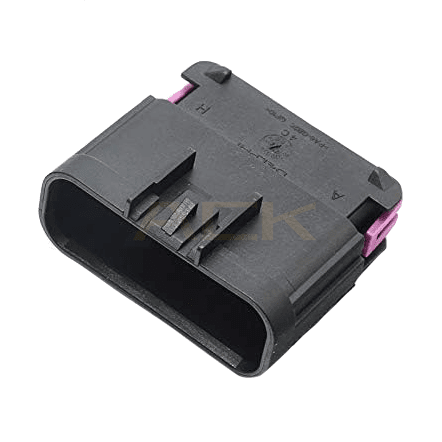

Aptiv GT 150 280 16 Hole Male Sealed Connector Assembly 15326085

SKU ACK7161A-1.5-2.8-11 Category Tags , , ,

OEM Part No.: 15326085

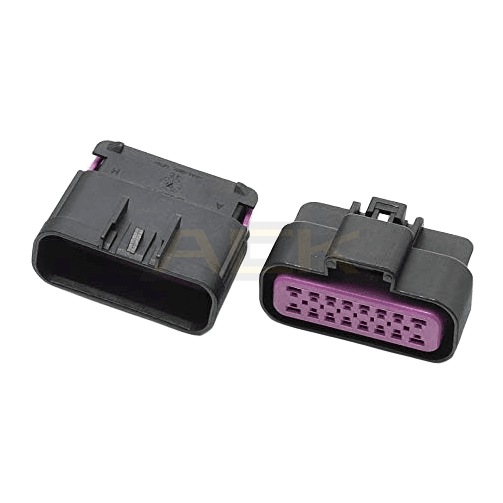

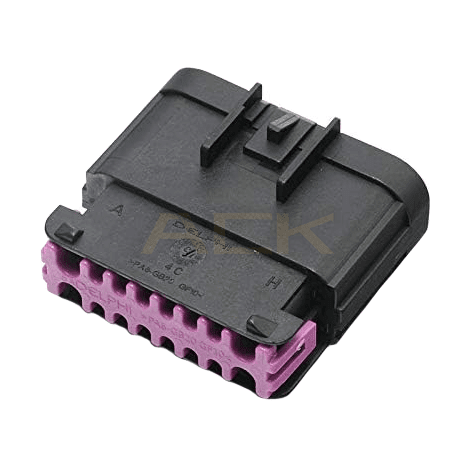

Mating Connector: ACK7161A-1.5-2.8-21 (15326084)

Additional information

Classified Parts

Housing

Tab Size

1.5mm(060), 2.8mm(110)

Male/Female

Male

Unsealed/Sealed

Sealed

Number of Poles

16 Pin

ACK Part Number

ACK7161A-1.5-2.8-11

Classification

OEM/ACK

Guarantee Period

Lifetime Warranty

Free Sample

Yes

MOQ

Small orders can be accepted; 50/100/200/500 PCS per bag

Material

PBT+G, PA66+GF

Wire Gauge Range

22-16AWG

Operating Temperature Range

-40℃~120℃

Accessories to Choose

A (with terminals & seals), B (Without Terminals & seals), C (Only Terminals), D (Only Seals)

Packing

Customized (Blister Packing, PVC Box, Label, etc.), Plastic Bag, Export standard carton

Certification

TUV, TS16949, ISO14001, RoHS

ACK is committed to providing a lifetime after-sales solution.
If for any reason you are not satisfied with our product or service, please feel free to contact us, we will answer and solve it asap to meet your 100% satisfaction with the best service.

Regarding the refund, please advise the invoice number and ensure the completed packaging of the goods. Your action will enable us to expedite the verification and arrange the refunds immediately after receiving the return.

We accept custom wire harnesses from simple to complex. Please contact our team to get the quotation.

DHL, FedEx, UPS, TNT, EMS, By air, By sea

  • Paypal: Available for orders under $1,000.
  • T/T: No order amount is limited.
  • West Union: No order amount is limited.

Delphi GT Connection Systems

Delphi’s GT terminal and connector system was developed with global customer input at every design phase and has a small package size suited to fit the shrinking space requirements of today’s vehicles.

Typical Application

The GT Connection System is suitable for in-line, device,
header or bulkhead vehicle applications. The number and
orientation of cavities can be configured to a customer’s specific application. In addition to providing customized designs, Delphi offers the following:

GT 150 and 280 Series are available in both sealed and unsealed versions in cavity variations between 2-way and 16-way. GT 630 is available in two-way sealed and one-way to four-way unsealed.

gt150

GT 150 SERIES

gt280

GT 280 SERIES

What does Delphi GT Series Connector Kit contain?

delphi gt series kit

Do you want to have your custom Delphi connector kits? ACK can provide different specifications according to the specific needs of the customer and quote back.
