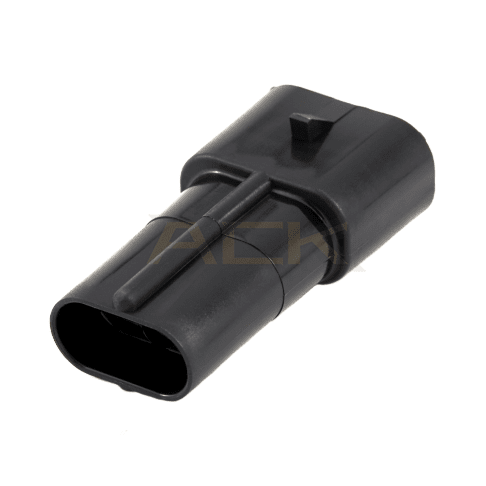

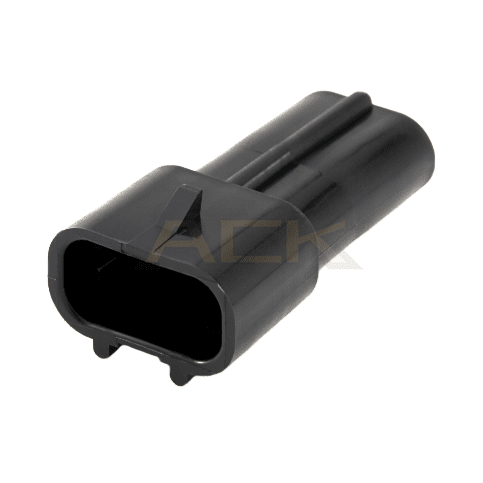

Delphi 2 Pin Metri-Pack 630 Series Sealed Male Connector 12034269

SKU ACK7026A-6.3-11 Categories , Tags , , ,

OEM Part No.: 12034269

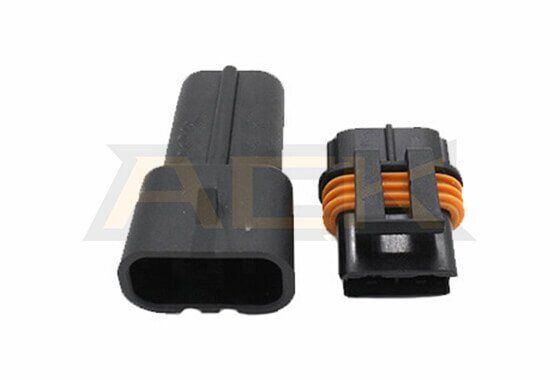

Mating Connector: ACK7026A-6.3-21(12033769)

Additional information

Classified Parts

Housing

Tab Size

6.3mm(250)

Male/Female

Male

Unsealed/Sealed

Sealed

Number of Poles

2 Pin

ACK Part Number

ACK7026A-6.3-11

Classification

OEM/ACK

Guarantee Period

Lifetime Warranty

Free Sample

Yes

MOQ

Small orders can be accepted; 50/100/200/500 PCS per bag

Material

PBT+G, PA66+GF

Wire Gauge Range

22-10AWG

Operating Temperature Range

-40℃~120℃

Accessories to Choose

A (with terminals & seals), B (Without Terminals & seals), C (Only Terminals), D (Only Seals)

Packing

Customized (Blister Packing, PVC Box, Label, etc.), Plastic Bag, Export standard carton

Certification

TUV, TS16949, ISO14001, RoHS

ACK is committed to providing a lifetime after-sales solution.
If you are unsatisfied with our product or service, please feel free to contact us, we will answer and solve it as soon as possible to meet your 100% satisfaction with the best service.

Regarding the refund, please advise the invoice number and ensure the completed packaging of the goods. We can expedite the verification and arrange the refunds immediately after receiving the return.

We accept custom wire harnesses from simple to complex. Please get in touch with our team to get the quotation.

DHL, FedEx, UPS, TNT, EMS, By air, By sea

  • Paypal: Available for orders under $1,000.
  • T/T: No order amount is limited.
  • West Union: No order amount is limited.

What's Metri Pack Connector?

Metri-Pack is a family of electrical connection systems that utilize internationally standardized male blade sizes (series) allowing for flexibility in design. It has 5 different blade widths and capacities ranging from 14 to 60amps. Sealed Metri-Pack can be used in applications requiring more than the 20-amp capacity provided with Weather Pack.

Comparison of specification information between Metri-Pack Connector and Weather-Pack Connector

metri pack 150 150.2 280 480 630 series connector

Metri-Pack Connector

1 set 1 2 3 4 6pin weather pack weatherpack electrical wire 2 5 connector

 Weather-Pack Connector

Popular Metri-Pack Connector Components

Metri-Pack represents Packard’s second-generation modular connector. Like Packard 56, Metri-Pack is available in more applications than inline. Pretty much all GM electrical components from the ’90s onward feature Metri-Pack connections. Metri-Pack Connector provides high-current density in a small and compact design, offers an excellent resistance to temperature, chemicals, and abrasion so that widely used in automotive, marine, and agricultural applications. The famous are 150 series and 280 series.

150 Series

Blade Width: 1.5mm Current Rating: 14 Amps

150.2 Series

Blade Width: 1.5mm Current Rating: 14 Amps

280 Series

Blade Width: 2.8mm Current Rating: 30 Amps

480 Series

Blade Width: 4.8mm Current Rating: 42 Amps

630 Series

Blade Width: 6.3mm Current Rating: 46 Amps

150 Series

Metri-Pack 150 Connectors feature current capabilities from 0A to 14A and an operating temperature range of -40°C to +125°. They are designed to meet or exceed the requirements for most marine, appliance, and industrial control applications. The 150 series is also ideal for applications with limited space.

150.2 Pull-to-seat Series

Metri-Pack 150 “pull to seat” (P2S) wiring connector plugs used for connections to air temperature, throttle position, oil pressure switches etc. Feed cable through the seal of the housing then crimp the terminal to the cable. Pull the cable and terminal into the housing from the back of the housing.

280 Series

Because of their excellent resistance to temperature, chemicals, and abrasions, Metri-Pack 280 connectors may be used in under-hood automotive applications as well as most marine, off-road, and agricultural applications.

480 Series

These sealed 480 connectors are well suited for the rigorous demands of under-hood vehicle, marine, and industrial applications. TPAs and a triple-rib silicone coated cable seals, you can be confident that these terminals are secure and protected. Rated up to 42 amps, they perform in temperatures as low as -40°F (-40°C) and as high as 257°F (125°C).

630 Series

These sealed 480 connectors are well suited for the rigorous demands of under-hood vehicle, marine, and industrial applications. TPAs and a triple-rib silicone coated cable seals, you can be confident that these terminals are secure and protected. Rated up to 42 amps, they perform in temperatures as low as -40°F (-40°C) and as high as 257°F (125°C).

What does Metri Pack Connector Kit contain?

metri pack connector kit

Do you want to have your custom Delphi connector kits? ACK can provide different specifications according to the specific needs of the customer and quote back.

How do you crimp&removal a Metri-pack connector?

Crimping

Removal

Crimping Tool

crimping pliers delphi weather pack metri pack connectors crimp terminals crimper tool 0

Removal Tool

crimping pliers delphi weather pack metri pack connectors crimp terminals crimper tool 0
removal tool for metri pack connector
