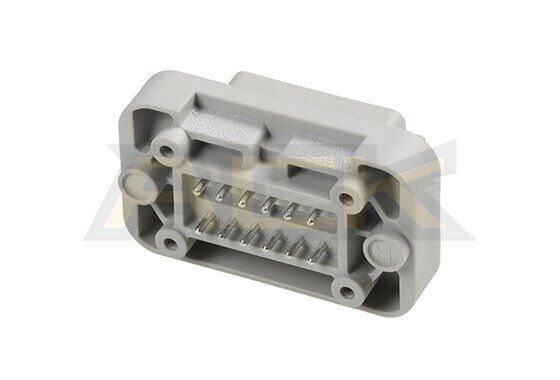

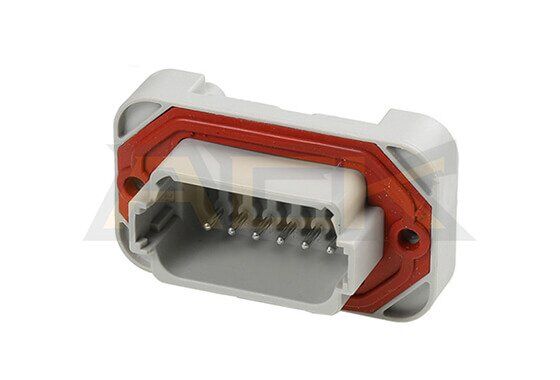

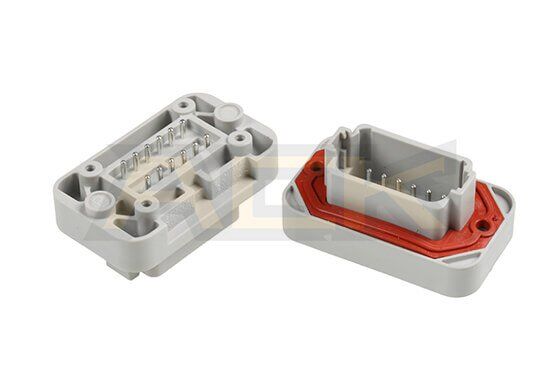

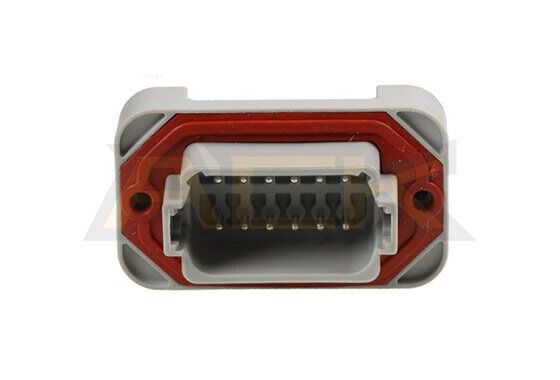

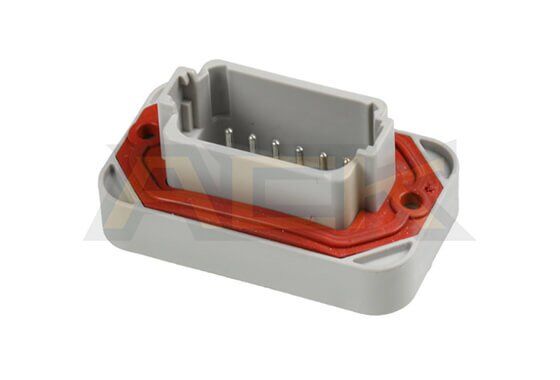

Deutsch 12 Position Straight Flange Mount PCB Header DT15-12PA

SKU DT15-12P Category Tags , , ,

OEM Part No.: DT15-12PA

Mating Connector: DT06-12SA-E003, DT06-12SA-E008, DT06-12SA, DT06-12SA-EP06, DT06-12SA-P012, DT06-12SA-CE10, DT06-12SA-CE05DT06-12SA-EP08, DT06-12SA-CE04, DT06-12SA-CE13, DT06-12SA-E005, DT06-12SA-EP20, DT06-12SA-EP07, DT06-12SA-CE02, DT06-12SA-C017, DT06-12SA-CE12, DT06-12SA-CE01, DT06-12SA-CE06,  DT06-12SA-B016, DT06-12SA-C015, DT06-12SA-CE11, DT06-12SA-EP04, DT06-12SA-P004

Additional information

Classified Parts

Housing

Tab Size

1.5mm(060)

Male/Female

Male

Unsealed/Sealed

Sealed

Number of Poles

12 Pin

ACK Part Number

DT15-12P

Classification

OEM/ACK

Guarantee Period

Lifetime Warranty

Free Sample

Yes

MOQ

Small orders can be accepted; 50/100/200/500 PCS per bag

Material

PBT+G, PA66+GF

Wire Gauge Range

22-16AWG

Operating Temperature Range

-40℃~120℃

Accessories to Choose

A (with terminals & seals), B (Without Terminals & seals), C (Only Terminals), D (Only Seals)

Packing

Customized (Blister Packing, PVC Box, Label, etc.), Plastic Bag, Export standard carton

Certification

TUV, TS16949, ISO14001, RoHS

ACK is committed to providing a lifetime after-sales solution.
If for any reason you are not satisfied with our product or service, please feel free to contact us, we will answer and solve it asap to meet your 100% satisfaction with the best service.

Regarding the refund, please advise the invoice number and ensure the completed packaging of the goods. Your action will enable us to expedite the verification and arrange the refunds immediately after receiving the return.

We accept custom wire harnesses from simple to complex. Please contact our team to get the quotation.

DHL, Fedex, UPS, TNT, EMS, By air, By sea

  • Paypal : Available for orders under $1,000.
  • T/T :No order amount limited.
  • West Union : No order amount limited.

What's Deutsch Connector?

The Deutsch connector system is an electrical interconnection device for severe conditions and harsh environments that provides a superior solution to any harnessing need. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.
background

Applications

Deutsch automotive connectors have been relied upon in challenging environments and are environmentally-sealed for use on applications from ECUs, engines, control boxes, lights to CAN systems, providing a firm, secure cable-to-cable connection.

Benefits

Deutsch connectors are a series of environmentally sealed connectors designed with ease of use in mind, it can be easily repaired on-site. They are built in such a way that they can be disconnected and reconnected a multitude of times making them an ideal choice for a range of applications.

What series of Deutsch connectors are available?

DT Series

DEUTSCH DT environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications. It is by far the most popular connector used in many automotive, industrial, and Motorsport applications.

DTM Series

Building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multipin connectors. It is a reliable and proven solution for smaller wire gauge applications that work in harsh environments.

DTP Series

Compare to DTM used for low power applications, DTP connectors are engineered for higher power applications, each contact with a 25 amp continuous capacity. These connectors are made of rugged thermoplastic and feature silicone rear wire and interfacial seals that provide reliable connections under harsh conditions.

What does Deutsch Kit contain?

deutsch connector kit

All of our Deutsch Kits include Deutsch terminals and tools, and can also be provided in different specifications according to the specific needs of the customer and quote back.

What contacts does the Deutsch connector fit with?

Deutsch connectors require high-quality terminals that are specifically designed for longevity, durability, and field serviceability. The solid contacts are designed for use with larger wire sizes and heavy-duty applications. Stamped & formed contacts are designed for use where wire termination costs are of primary concern without sacrificing the reliability of electrical circuits.

What tools does the Deutsch connector use?

Deutsch contacts must be crimped with the Deutsch tool. Deutsch can only warrant electrical performance when proper parts, procedures, and tooling are used. We ACK offers several types of tools to assist with hand wire crimping, wire insertion and removal, and wedge lock/terminal position assurance removal.
