Used for harsh environment applications. Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational Marine, Motorcycle.

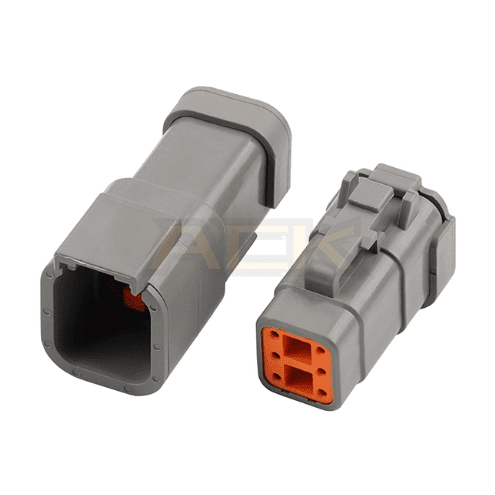

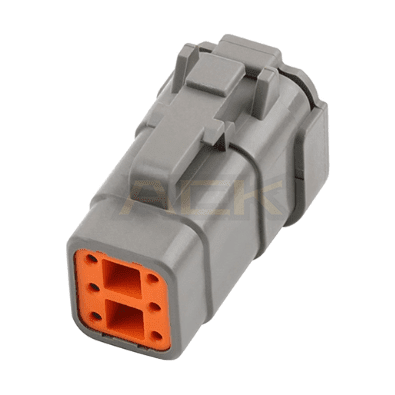

OEM Part No.: DTM06-6S
Mating Connector: DTM04-6P, DTM04-6P-E005, DTM04-6P-E003, DTM04-6P-EE04, DTM04-6P-E004
|Number of Poles
|ACK Part Number
Small orders can be accepted; 50/100/200/500 PCS per bag
|Wire Gauge Range
|Operating Temperature Range
|Accessories to Choose
A (with terminals & seals), B (Without Terminals & seals), C (Only Terminals), D (Only Seals)
Customized (Blister Packing, PVC Box, Label, etc.), Plastic Bag, Export standard carton
TUV, TS16949, ISO14001, RoHS
ACK is committed to providing a lifetime after-sales solution.
If for any reason you are not satisfied with our product or service, please feel free to contact us, we will answer and solve it asap to meet your 100% satisfaction with the best service.
Regarding the refund, please advise the invoice number and ensure the completed packaging of the goods. Your action will enable us to expedite the verification and arrange the refunds immediately after receiving the return.
We accept custom wire harnesses from simple to complex. Please contact our team to get the quotation.
DHL, Fedex, UPS, TNT, EMS, By air, By sea
Deutsch automotive connectors have been relied upon in challenging environments and are environmentally-sealed for use on applications from ECUs, engines, control boxes, lights to CAN systems, providing a firm, secure cable-to-cable connection.
Deutsch connectors are a series of environmentally sealed connectors designed with ease of use in mind, it can be easily repaired on-site. They are built in such a way that they can be disconnected and reconnected a multitude of times making them an ideal choice for a range of applications.
DEUTSCH DT environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications. It is by far the most popular connector used in many automotive, industrial, and Motorsport applications.
Building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multipin connectors. It is a reliable and proven solution for smaller wire gauge applications that work in harsh environments.
Compare to DTM used for low power applications, DTP connectors are engineered for higher power applications, each contact with a 25 amp continuous capacity. These connectors are made of rugged thermoplastic and feature silicone rear wire and interfacial seals that provide reliable connections under harsh conditions.
All of our Deutsch Kits include Deutsch terminals and tools, and can also be provided in different specifications according to the specific needs of the customer and quote back.
Deutsch connectors require high-quality terminals that are specifically designed for longevity, durability, and field serviceability. The solid contacts are designed for use with larger wire sizes and heavy-duty applications. Stamped & formed contacts are designed for use where wire termination costs are of primary concern without sacrificing the reliability of electrical circuits.
Deutsch contacts must be crimped with the Deutsch tool. Deutsch can only warrant electrical performance when proper parts, procedures, and tooling are used. We ACK offers several types of tools to assist with hand wire crimping, wire insertion and removal, and wedge lock/terminal position assurance removal.
